IN-MI-019 5 to 500kg Mini Force Sensor for Force measurement

IN-MI-019 5 to 500kg Mini Force Sensor for Force measurement

IN-MI-019 5 to 500kg Mini Force Sensor for Force measurement
CategoriesForce sensor
AlbumView larger image
BrandInntronic
ModelIN-MI-019
TypeMini Load Cell
MaterialStainless Steel
Capacity5~500kg
FOB portSHANGHAI
Terms of PaymentL/C
Update Time2019-05-24
Detail Information

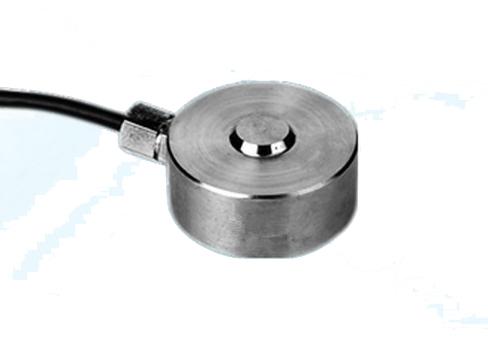

Stainless Steel 5~500kg Mini Force Sensor IN-MI-019



Mini Force Sensor



Force measurement in small space installation, such as feeling tester for keyboard switch, compression forcemeasurement for hot and cold lamination machine, and grasping force measurement for robotic hands

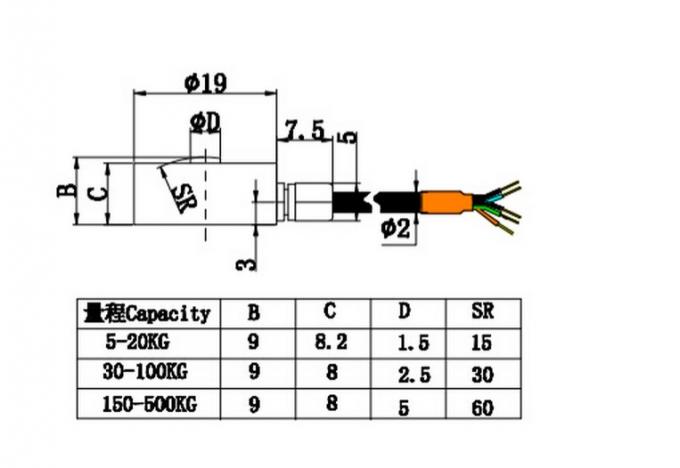

Stainless Steel 5~500kg Mini Force Sensor IN-MI-019





Capacity5~500kgMaterialStainless Steel
Rated Output1.0-1.5mV/VOutput Impedance350(1000)±3Ω
Zero Balance±2%F.S.Insulation≥5000MΩ/100VDC
Non-linearity0.5-1.0%F.S.Recommended Excitation2.5-5V
Hysteresis0.5%F.S.Maximum Excitation5V
Repeatability0.5%F.S.Compensated Temp Range-10~60ºC
Creep (30min)0.1%F.S.Operating Temp Range-20~80ºC
Temp Effect on Output0.1%F.S./10ºCSafe Load Limit120%
Temp Effect on Zero0.1%F.S./10ºCUltimate Load Limit150%
Input Impedance350(1000)±10ΩCable Sizeφ2 x 3m
Wire ConnectionEx + : Red; Ex - : Black; Sig + : Green; Sig - : White
